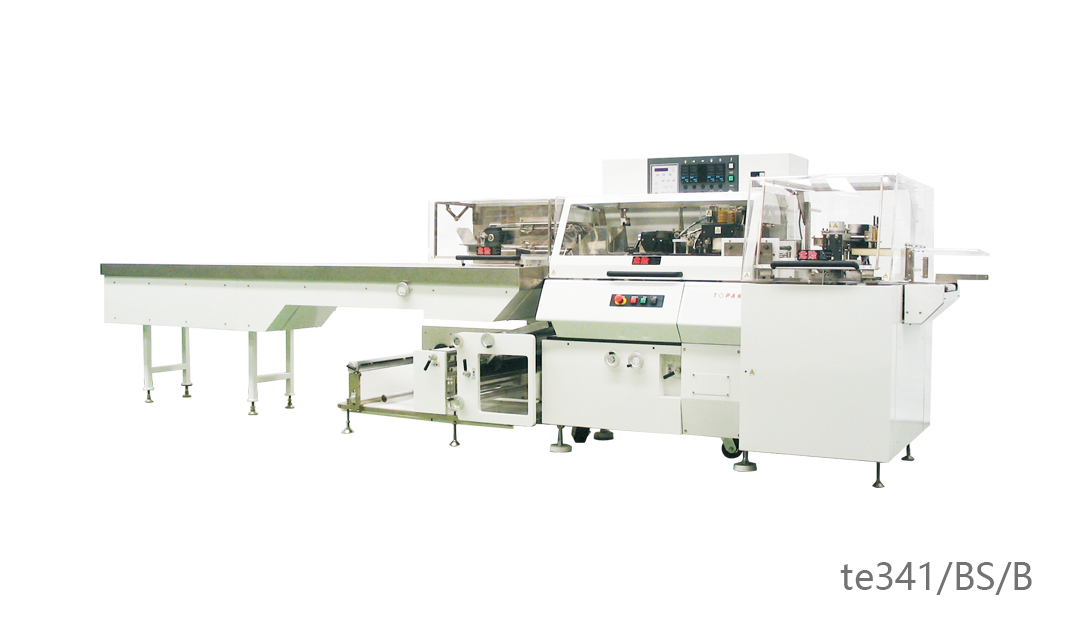

TOPAK TE341/BS/B HORIZONTAL BACK FORM-FILL-SEAL WRAPPER

【Standard Features】

  • te341/BS/B uses back sealer design, suitable for wrapping multiple items without tray.
  • Bottom film feeder system transfers products from in-feed conveyor to film accurately and conveniently.
  • Unique Regi-mark tracking system guarantees correct package design.
  • Maximum film width can reach 700mm.
  • Box motion end sealer suitable for wider and taller product packaging<./li>

【Standard Specifications】

Machine Model TE341/BS/B
End Sealer Type BD114 RD140
Operating Speed 15~70P/M
Cut Off Length 180~350mm 220~440mm
Maximum Film Width 700mm
Maximum Roll Diameter 300mm
Maximum Product Dimension Width 220mm
Height 80mm 115mm
Main Motor 1KW
Heater 2.5KW
Machine Dimension 4355*1035*1480mm
Machine Weight Approx.1500kg
